PMA2-43LN+ Ultra-Low Noise Amplifier for 0.5-4.3GHz 0.6dB Noise Figure 18dB Gain +35dBm OIP3 Single +5V Supply Internal Bias 2.9dB Return Loss & SOT-89 Package
Features
Ultra low noise figure, 0.46 dB typ. at 1.9 GHz
High IP3, +33 dBm typ. at 1.9 GHz
High Pout, P1dB +19.9 dBm typ. at 1.9 GHz
Small size, 2 x 2 x 1mm
Applications
Base station infrastructure
Portable Wireless
LTE
GPS
GSM
Airborne radar
Description
Mini-Circuits PMA2-43LN+ is an E-PHEMT* based, ultra-low noise MMIC amplifier with a unique combination of low noise and high IP3, making this amplifier ideal for sensitive, high-dynamic-range receiver applications. This design operates on a single +5V supply, is well matched for 50Ω systems, and comes in a tiny, low profile package, accommodating dense circuit board layouts.
INFORMATION
| Category | | |
| Manufacturer | | |
| Series | | |
| Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
| Part Status | | |
| Frequency | | |
| P1dB | | |
| Gain | | |
| Noise Figure | | |
| RF Type | | |
| Voltage - Supply | | |
| Current - Supply | | |
| Test Frequency | | |
| Mounting Type | | |
| Package / Case | | |
| Supplier Device Package | | |
| Base Product Number | |

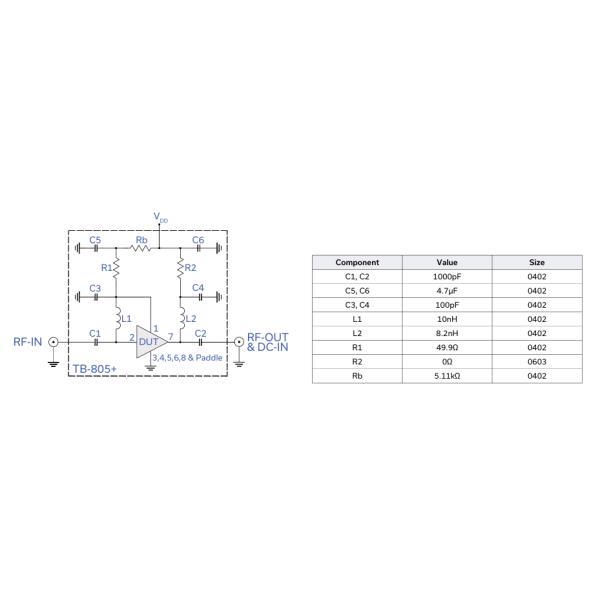

Drawing
